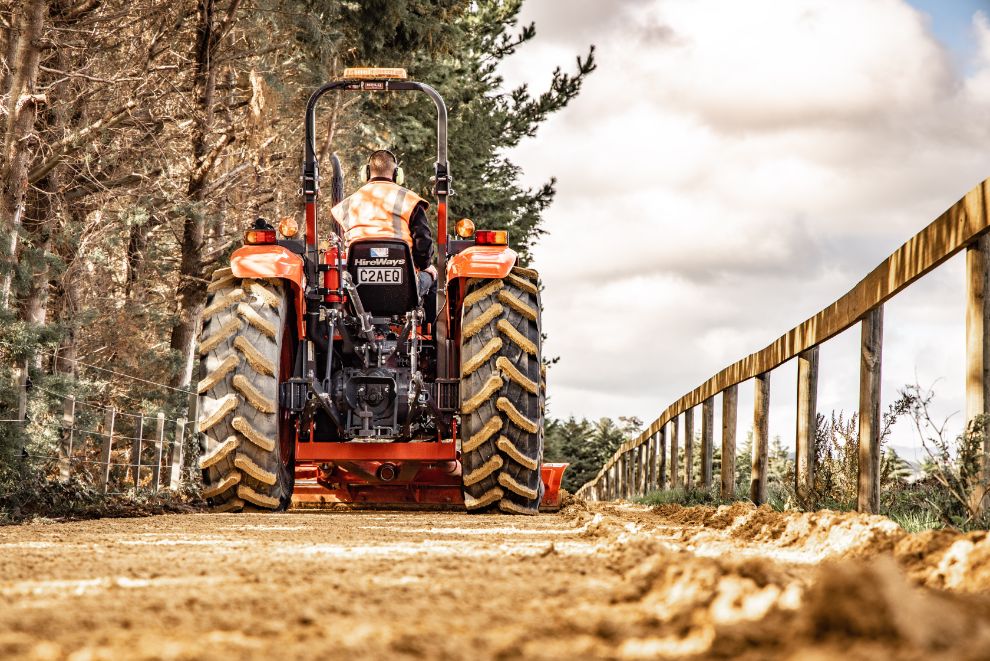

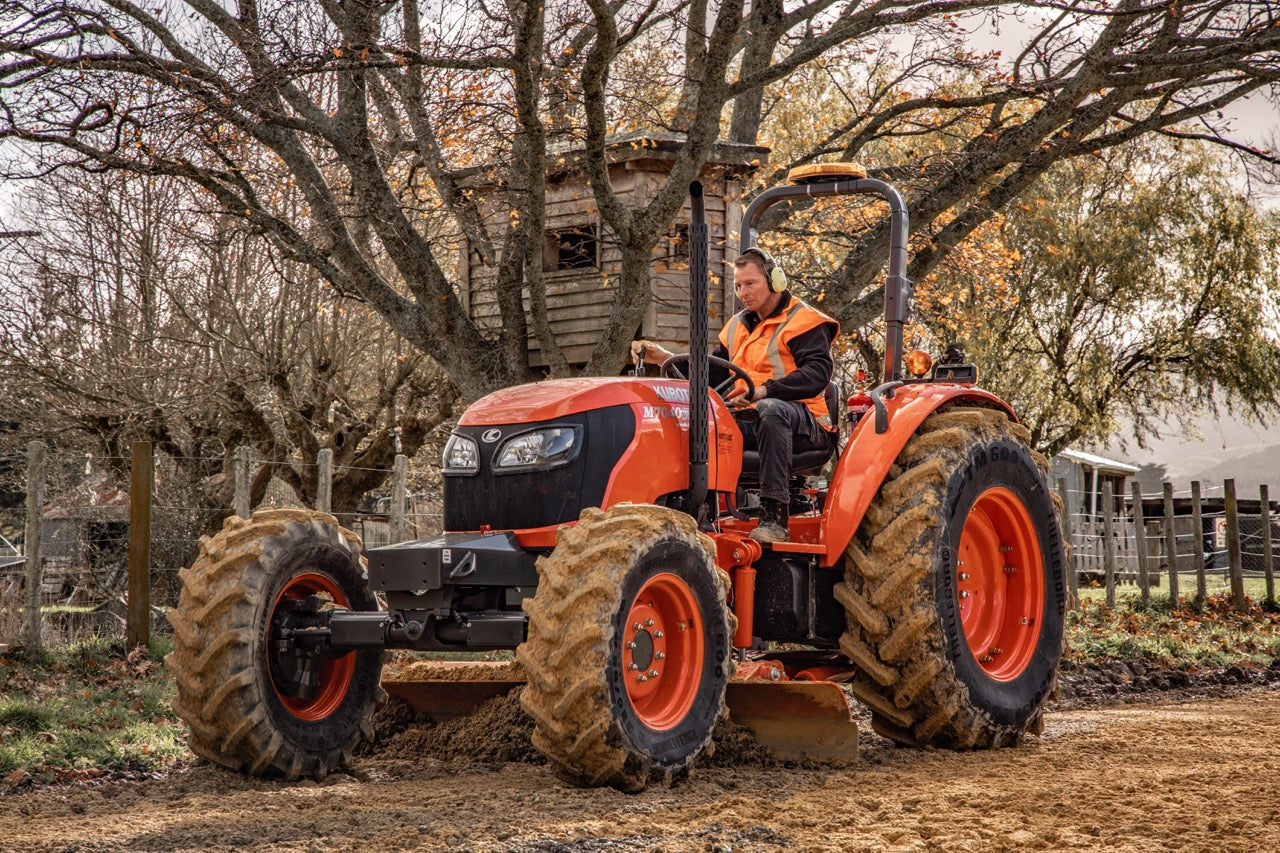

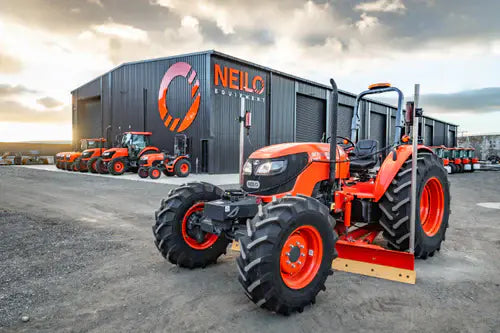

Neilo M7040 ROP's Tractor Grader

The main stay of our Tractor Grader Range

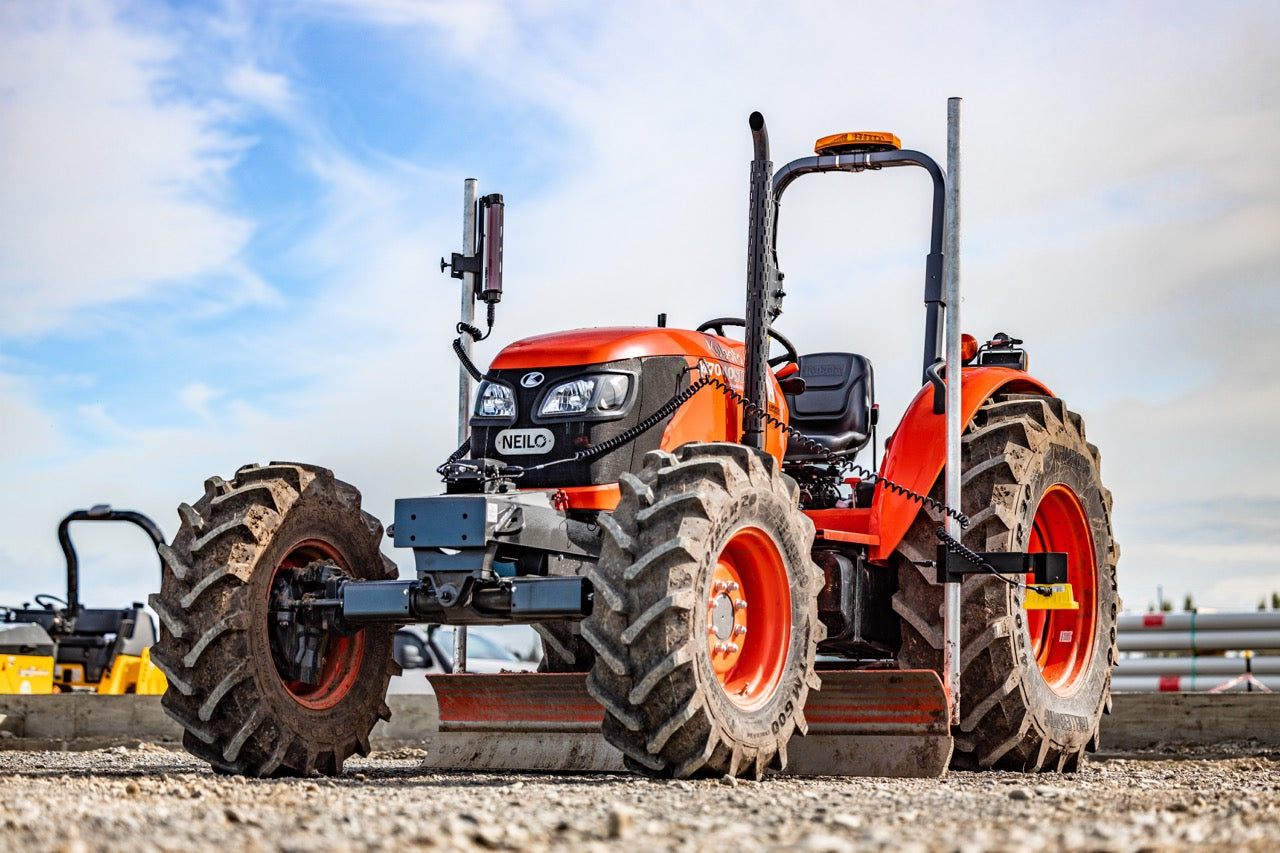

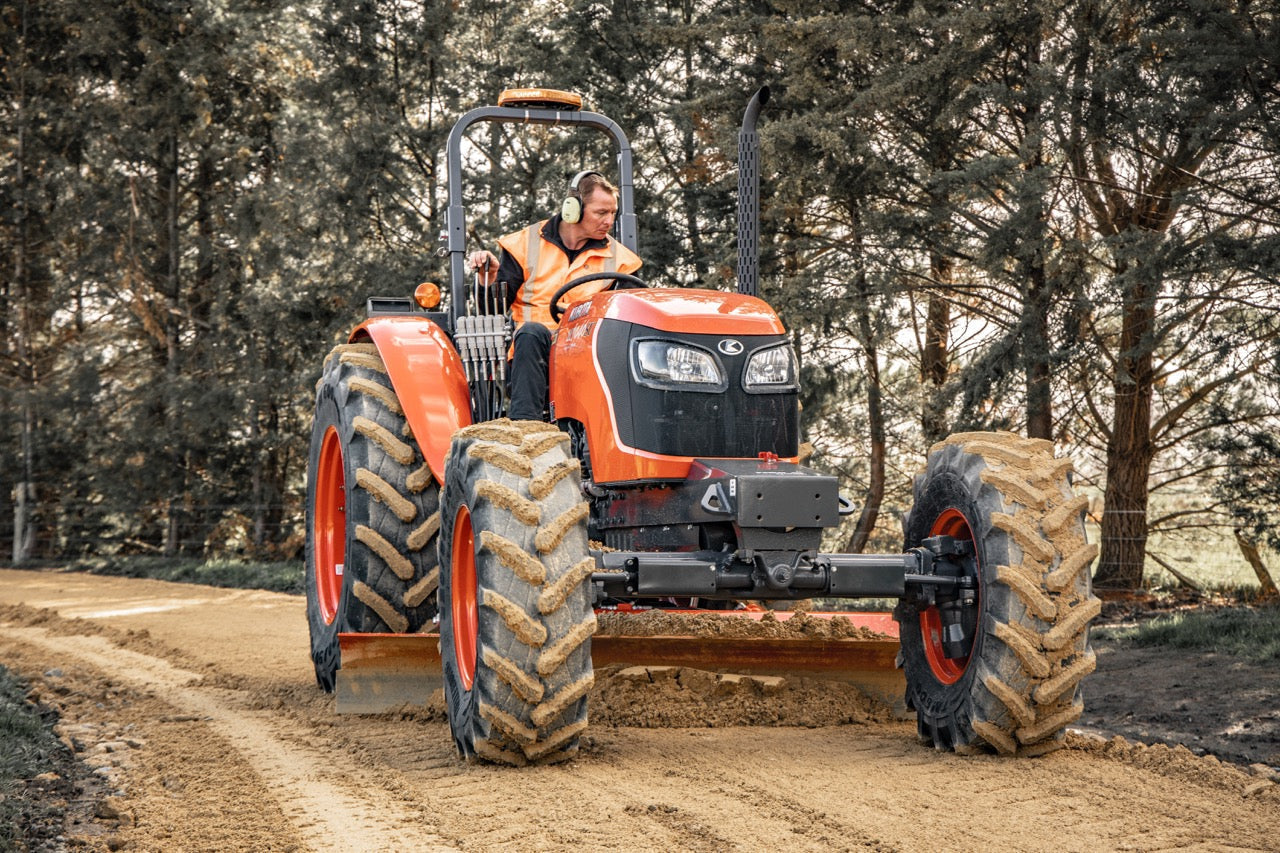

The Kubota M7040 is a powerful Tractor, the ideal candidate for our 2.4 metre mid-mounted Neilo grading system.

The perfect machine for larger roadworks or site works. The ROP's can be fitted with a plastic roof for sun protection, and the open cab style allows for great visibility of your grading surface.


Accessories/Add-ons

View Compatible Accessories

• 8 speed trans with wet clutch & Hydraulic Shuttle

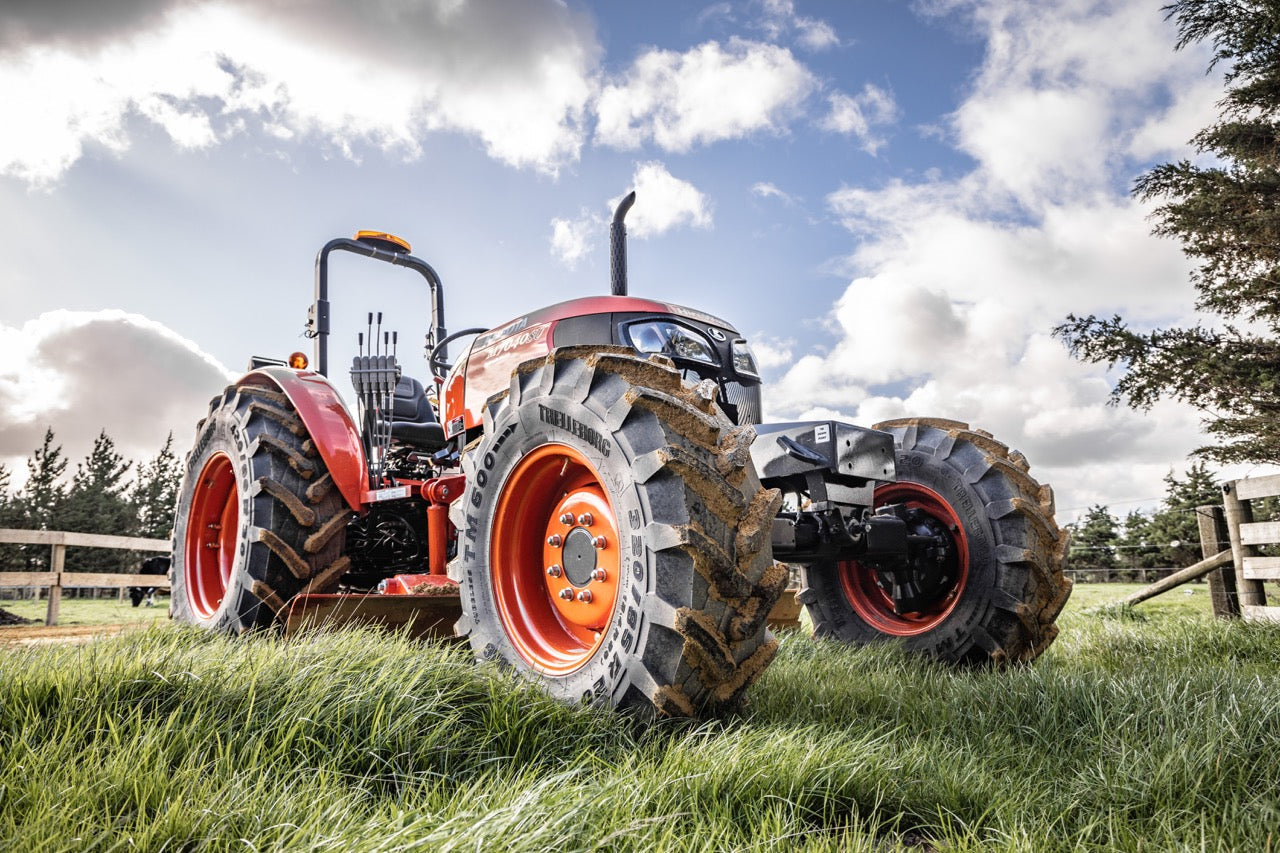

• Tractors wheelbase lengthened and lifted for stability, clearance and improved grading performance.

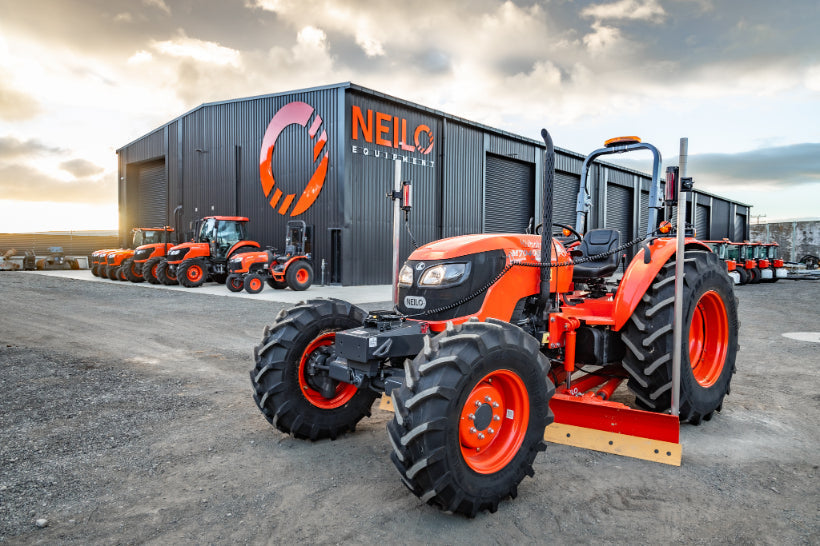

• Flashing LED beacon mounted on folding ROPS

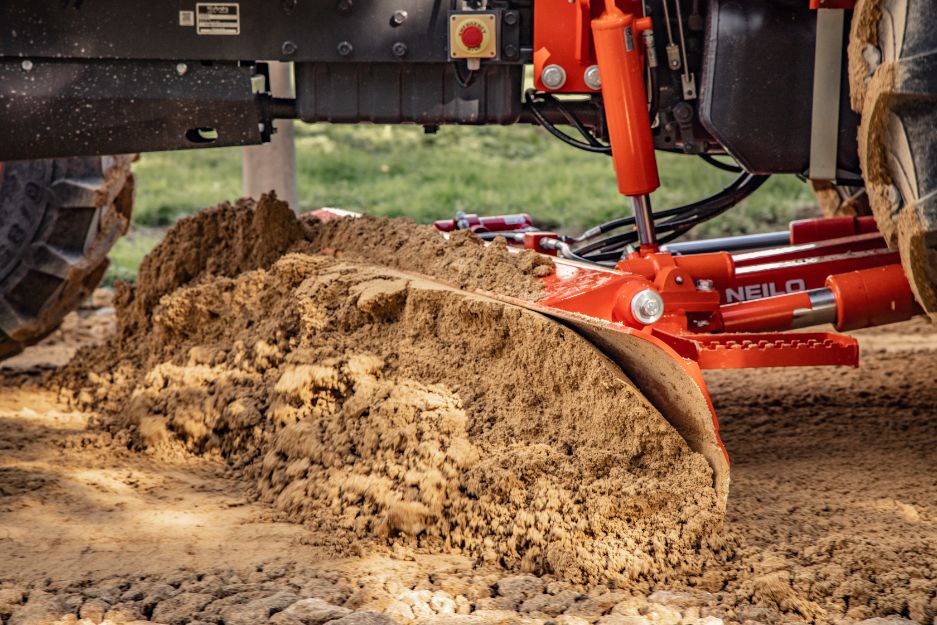

• 2.4m mid mounted grader with rev/rep cutting edge
• Hydraulic slew and profile of blade
• Hydraulic side shift of blade
• Hydraulic crowd of blade for superior control of material
• Blade in rolled back mode will slew on level plain at ground level

Standard
Weight3,090kg
Length3,730mm
Length With Broom5,350mm
Width Over Wheels1,920mm
Grader Width2,400mm
Side Shift Travel 390mm
Slew Angle Full Motion50°
Clearance Under Blade190mm
