Neilo Equipment

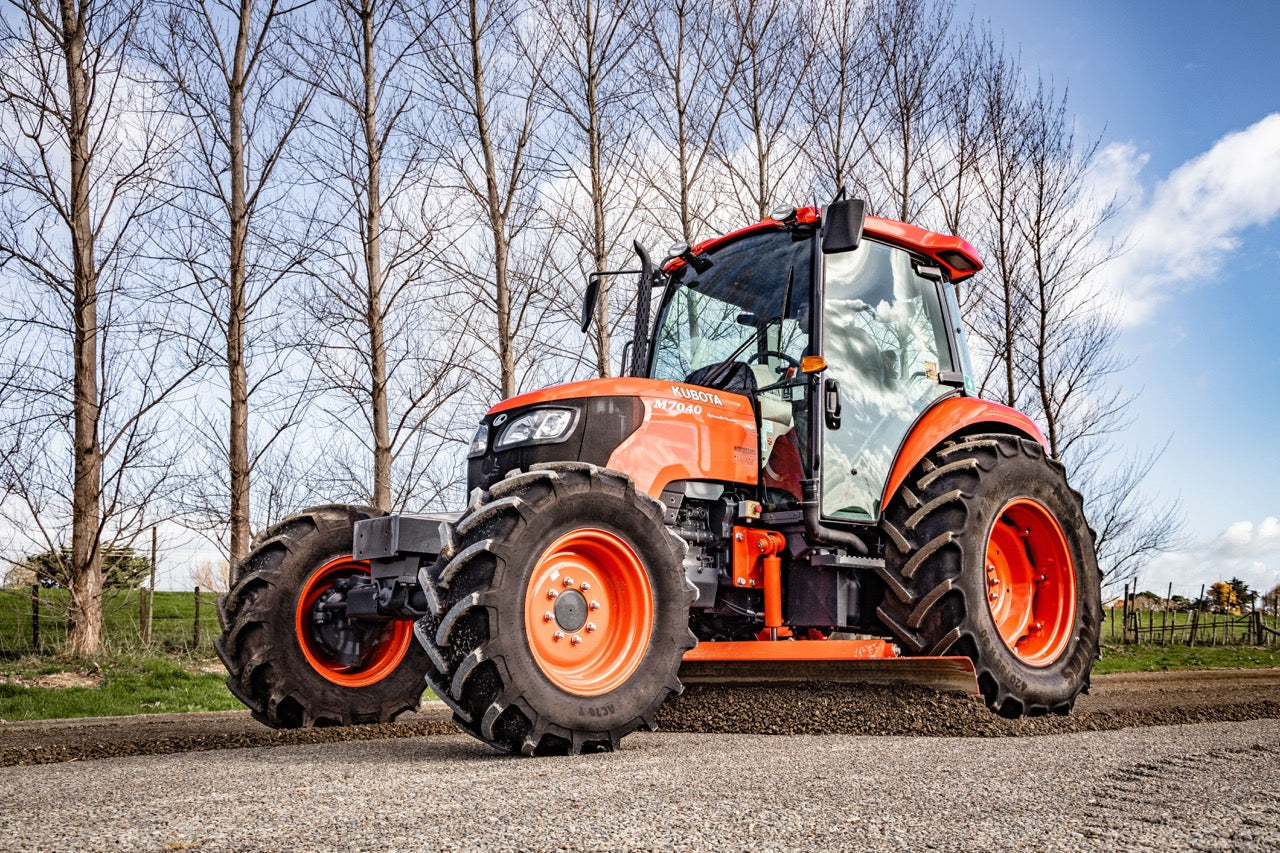

Neilo M7040 Cab Grader

High-Performance Tractor Grader

The Kubota M7040 Grader tractor is the ultimate grader machine for smaller, trickier jobs or general roadworks. The innovative grading system enables you to make fine adjustments as you move and the blade design enables you to slew on a level plain at ground level when in rolled back mode. The air conditioned cabin provides comfort in all weather conditions, whilst the industrial strength glass allows for superior visibility, keeping your people safe.


Accessories/Add-ons

View Full Accessory Details here

• 12 speed trans with wet clutch & Hyd. Shuttle & Creep

• 2x DA Remote valves
• Air Conditioned & heated cabin
• Telescopic lift lower lift arms
• Tractors wheelbase lengthened and lifted for stability, clearance and improved grading performance.
• Flashing LED beacon mounted on folding ROPS

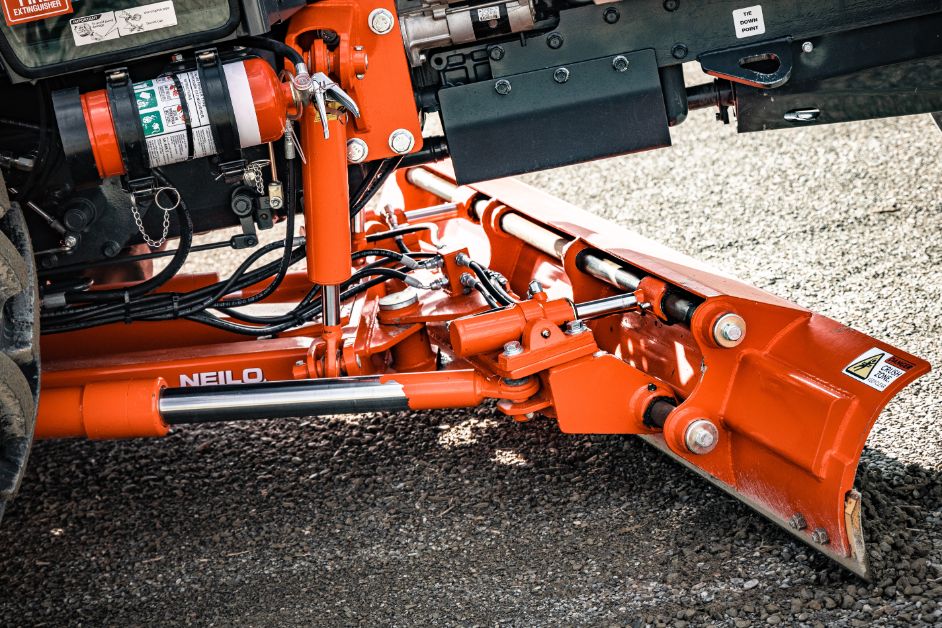

• 2.4m mid mounted grader with rev/rep cutting edge
• Hydraulic slew and profile of blade
• Hydraulic side shift of blade
• Hydraulic crowd of blade for superior control of material
• Blade in rolled back mode will slew on level plain at ground level

Standard
Weight3,760kg
Length3,730mm

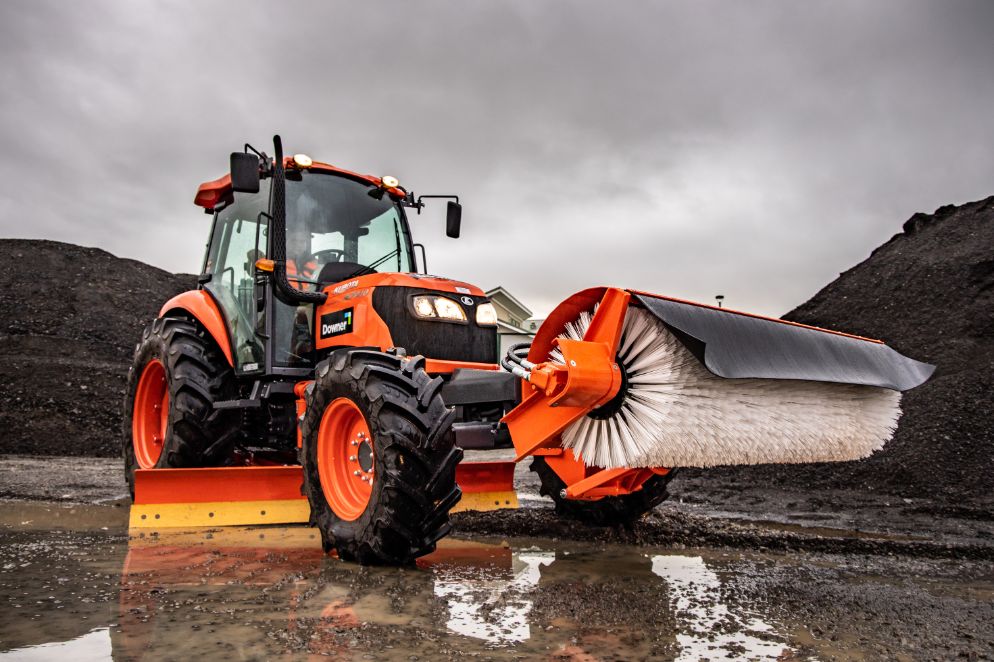

Length With Broom5,350mm
Width Over Wheels 1,920mm
Grader Width2,400mm
Side Shift Travel390mm
Slew Angle Full Motion50°
Clearance Under Blade 190mm
